Horizontal Rotolock Valves - Dual Port
- BRASS Service Port Caps are standard.
- STEEL Bottom Caps are standard; (Plastic or Brass Caps are optional)
- All Valves include a 1/4″ SAE Service Port for Charging or Evacuation.
- All DUAL PORTS are supplied with a secondary 1/4″ SAE port which are typically used for pressure controls.
Rotolock Horizontal Dual Port
| SIGMA PN | CONN | ROTOLOCK | TEFLON SEAL | BOTTOM CAP | Copeland X-Ref | Tecumseh X-Ref | IMAGE |
|---|---|---|---|---|---|---|---|
| H03FDA | 3/8" SAE | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-42 | 31578-1 | JPEG |

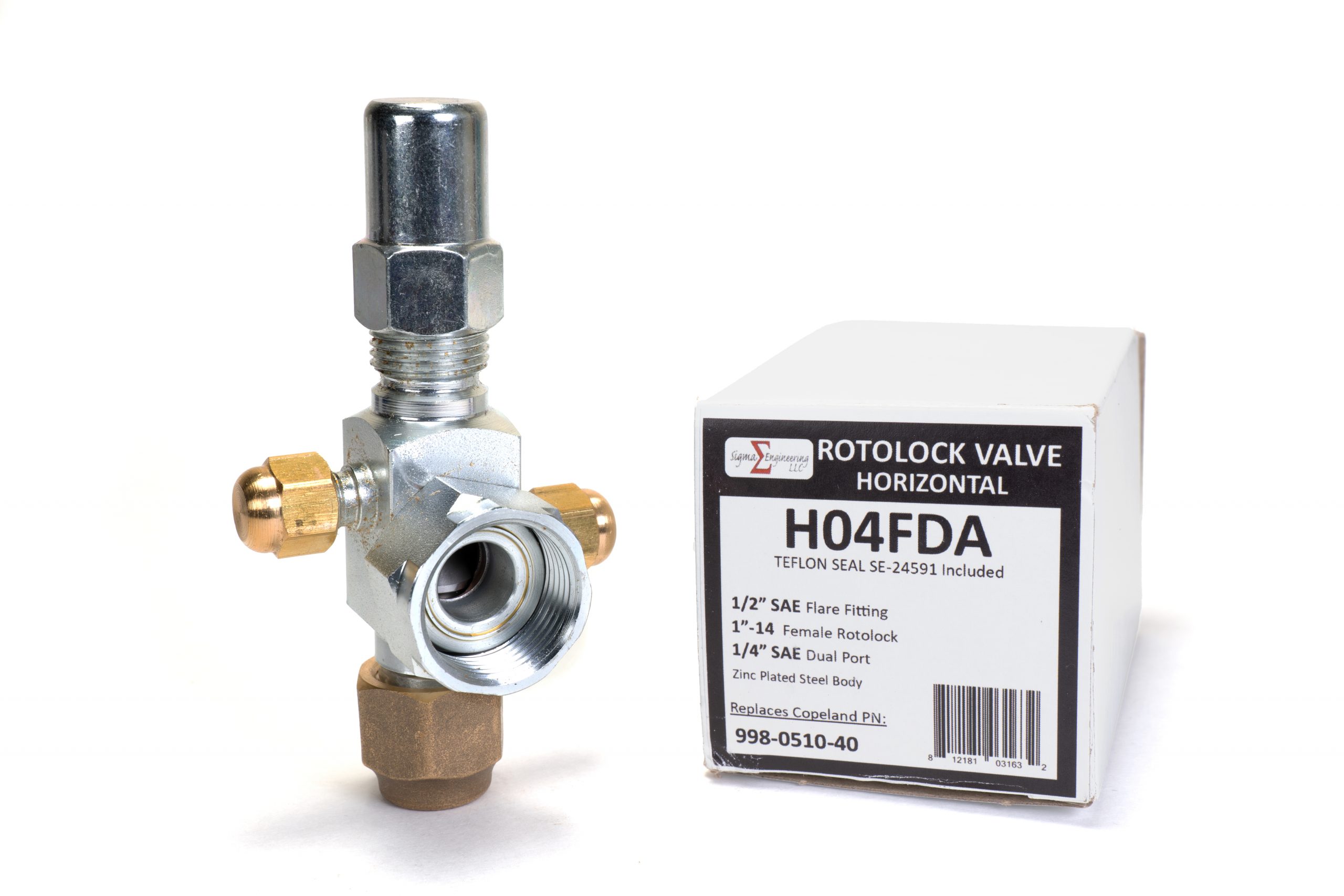

| H04FDA | 1/2" SAE | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-40 | 31585 | JPEG |

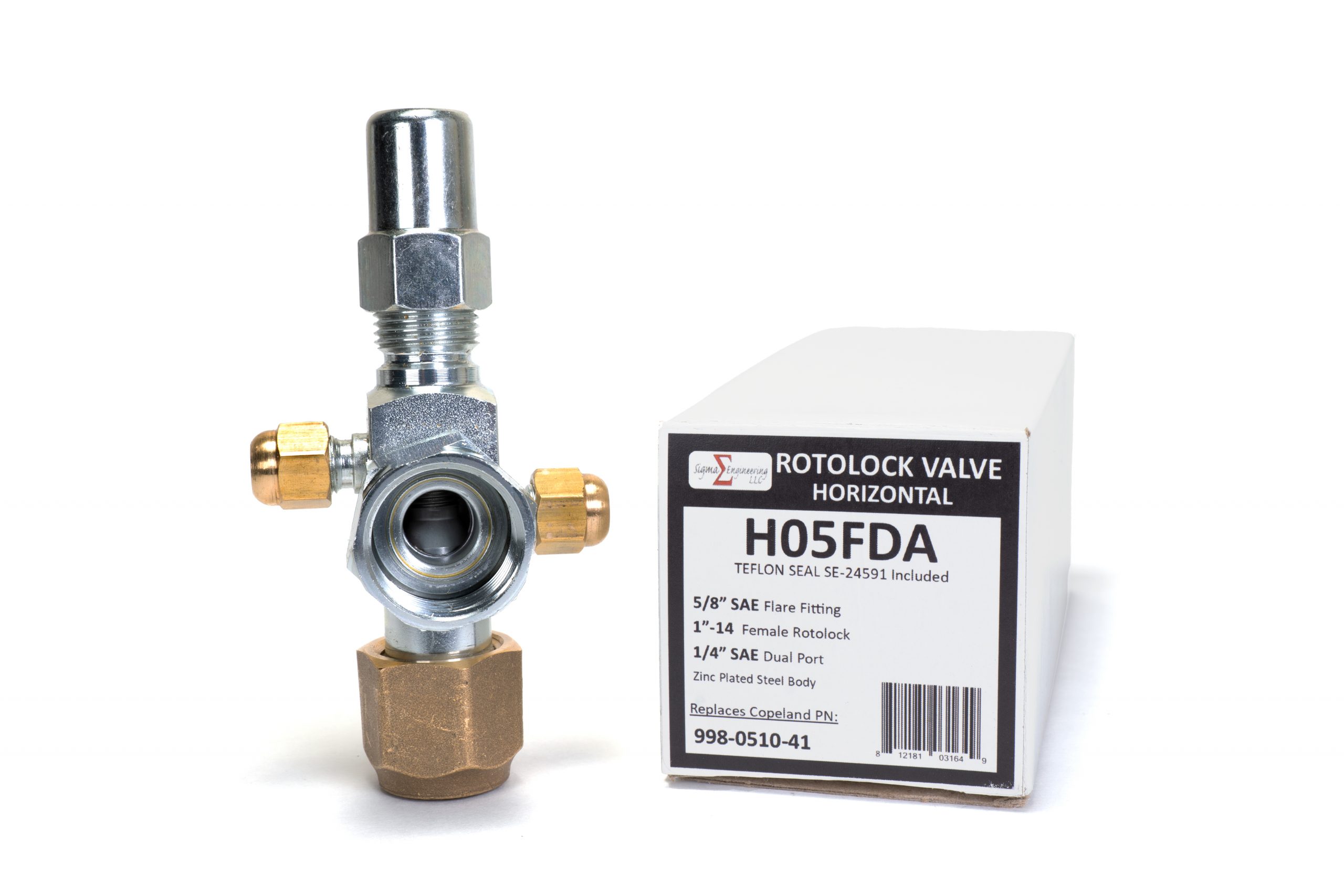

| H05FDA | 5/8" SAE | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-41 | 31522-4 | JPEG |

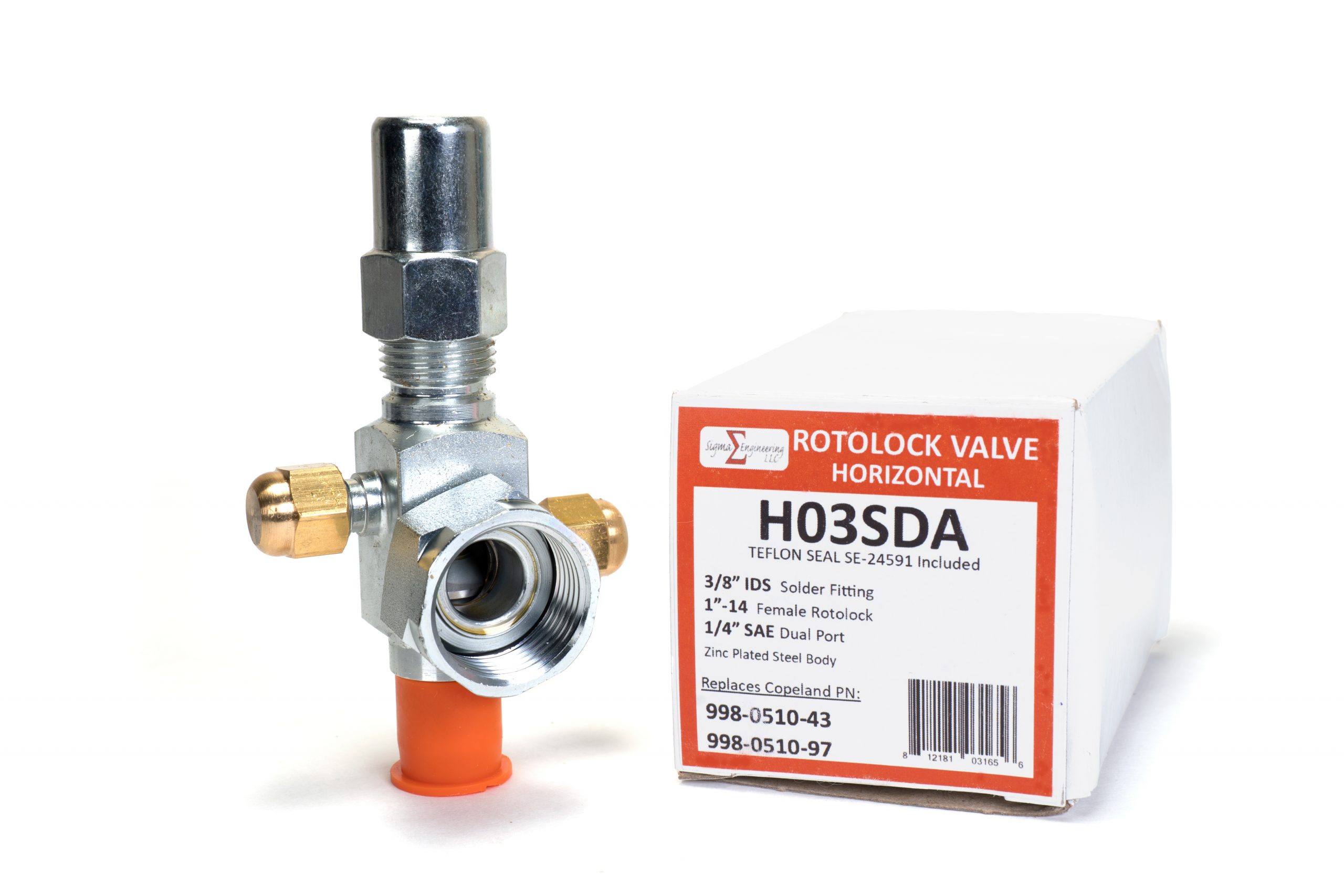

| H03SDA | 3/8" IDS | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-97 | 31593 | JPEG |

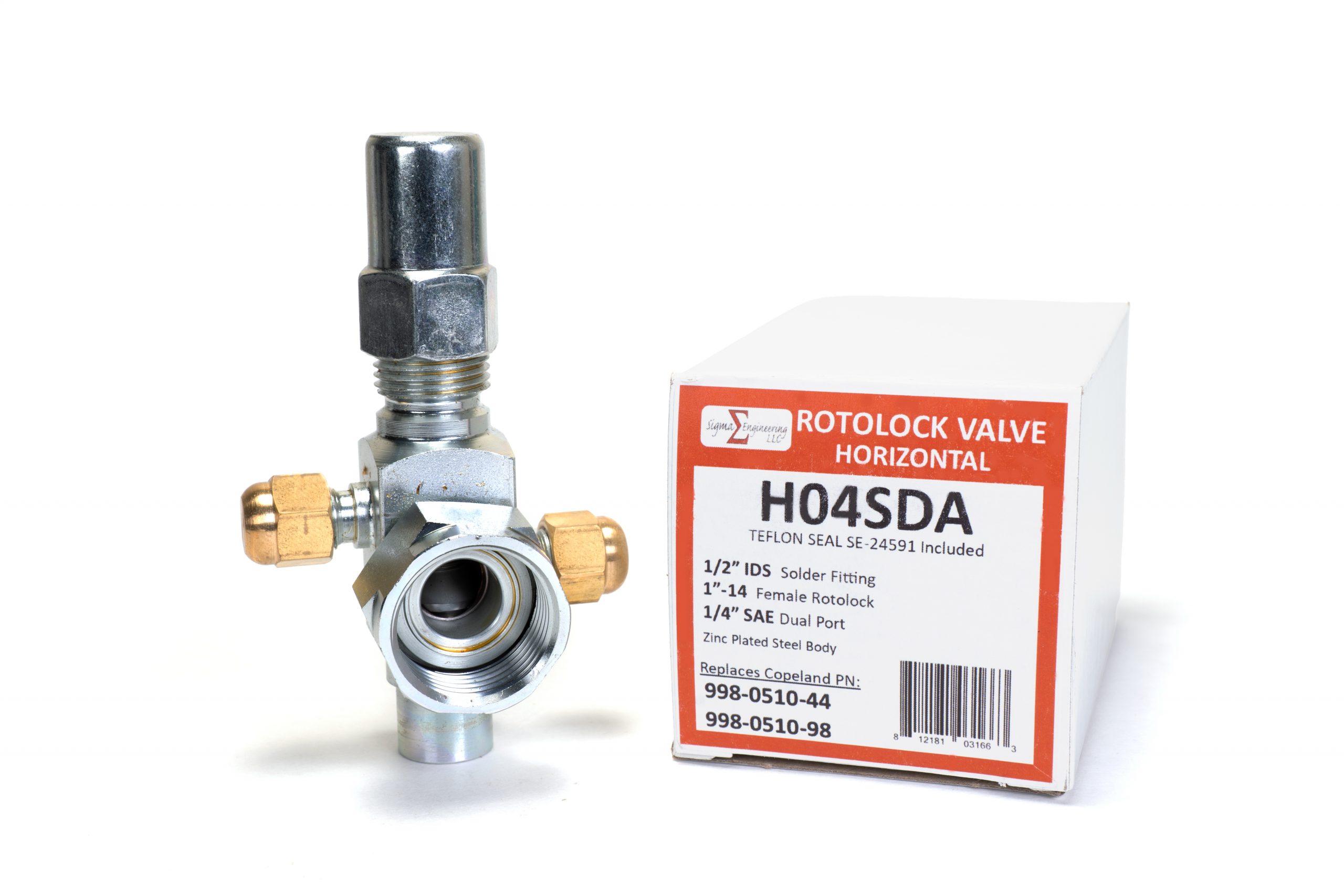

| H04SDA | 1/2" IDS | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-98 | 31592 | JPEG |

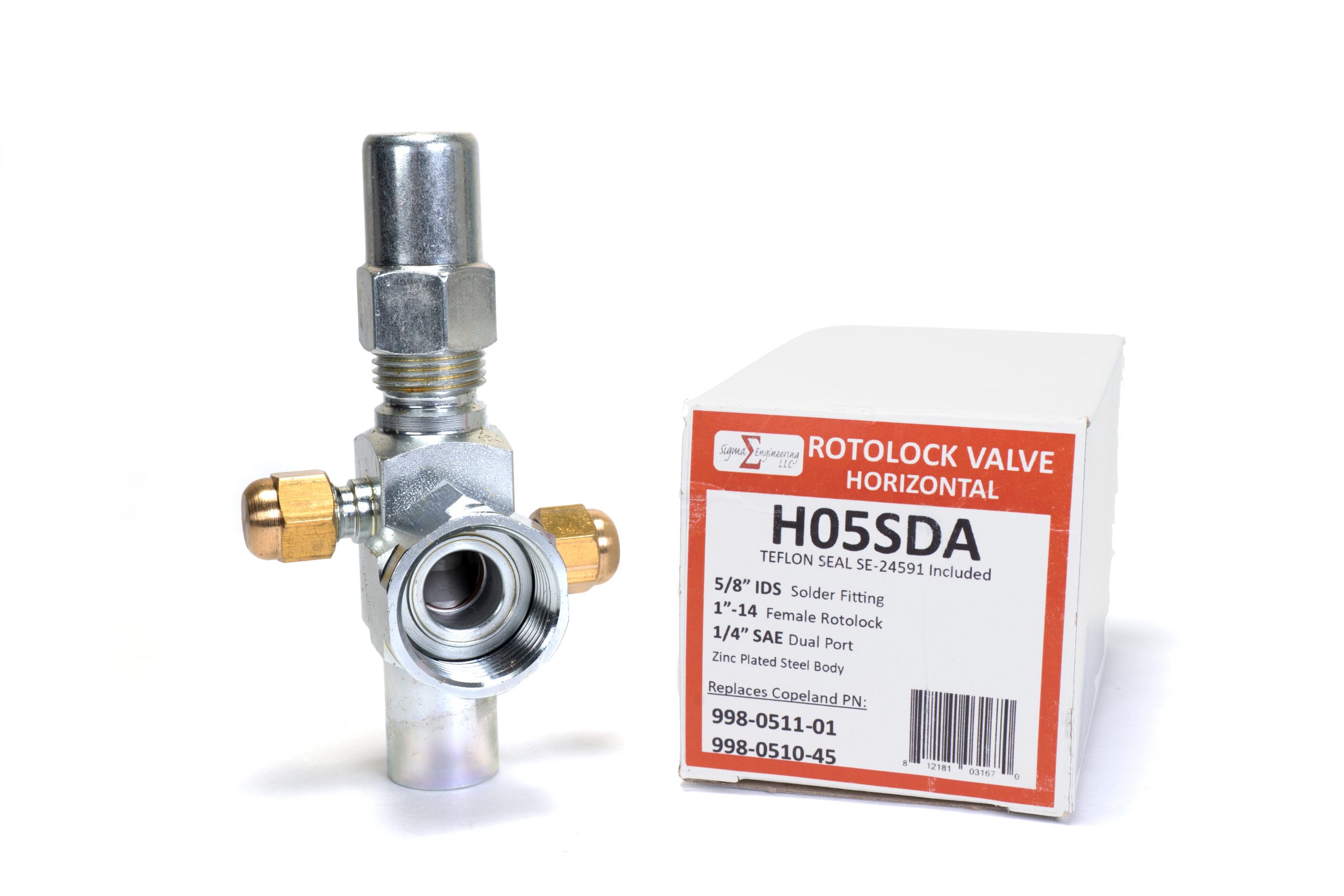

| H05SDA | 5/8" IDS | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0511-00 | 31590 | JPEG |

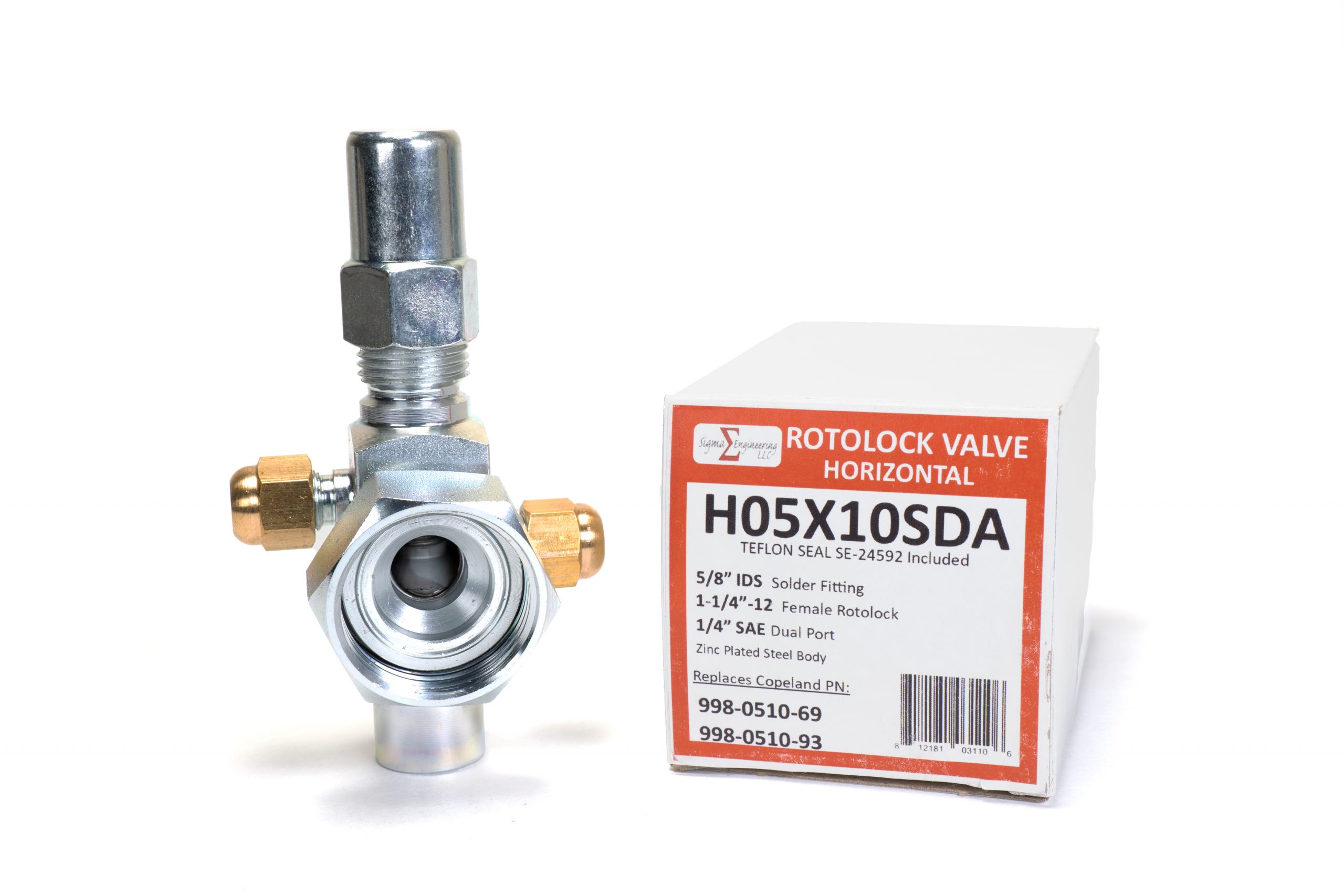

| H05X10SDA | 5/8" IDS | 1-1/4"-12 | SE-24592 | SE-RCAP-02P | 998-0510-69 | JPEG | |

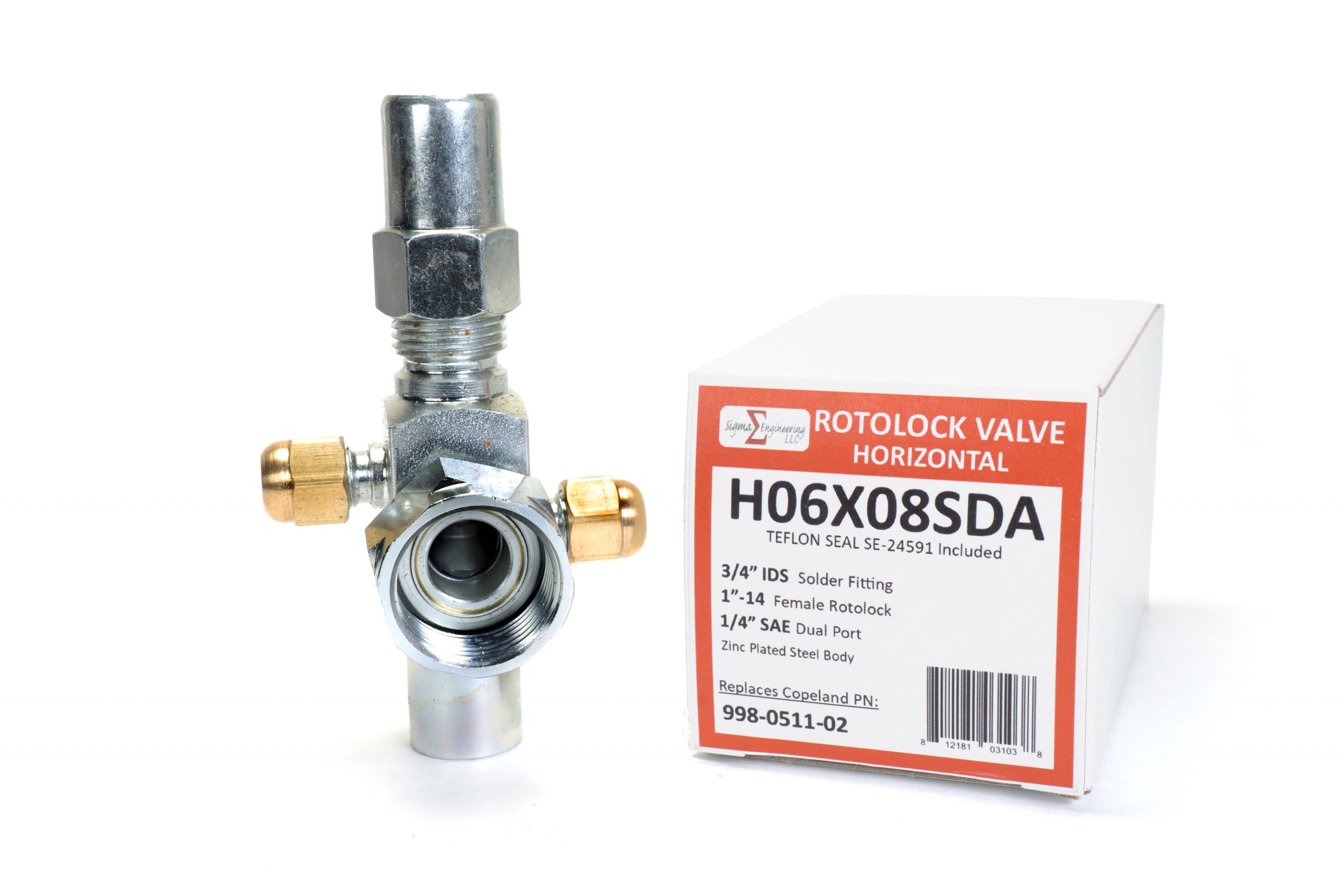

| H06X08SDA | 3/4" IDS | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0511-02 | JPEG | |

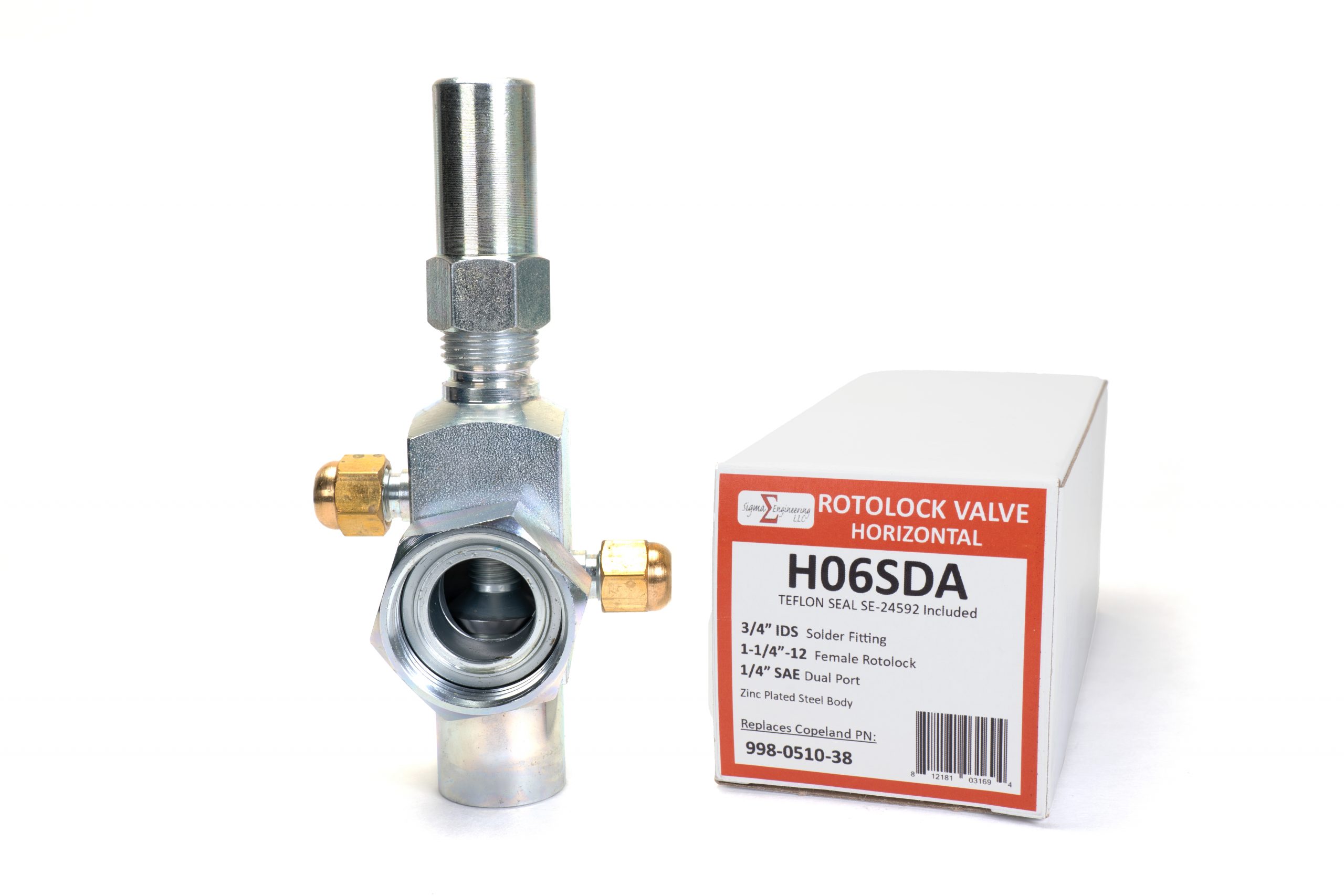

| H06SDA | 3/4" IDS | 1-1/4"-12 | SE-24592 | SE-RCAP-02P | JPEG | ||
| H07X08SDA | 7/8" IDS | 1"-14 | SE-24591 | SE-RCAP-01P | 998-0510-89 | JPEG | |

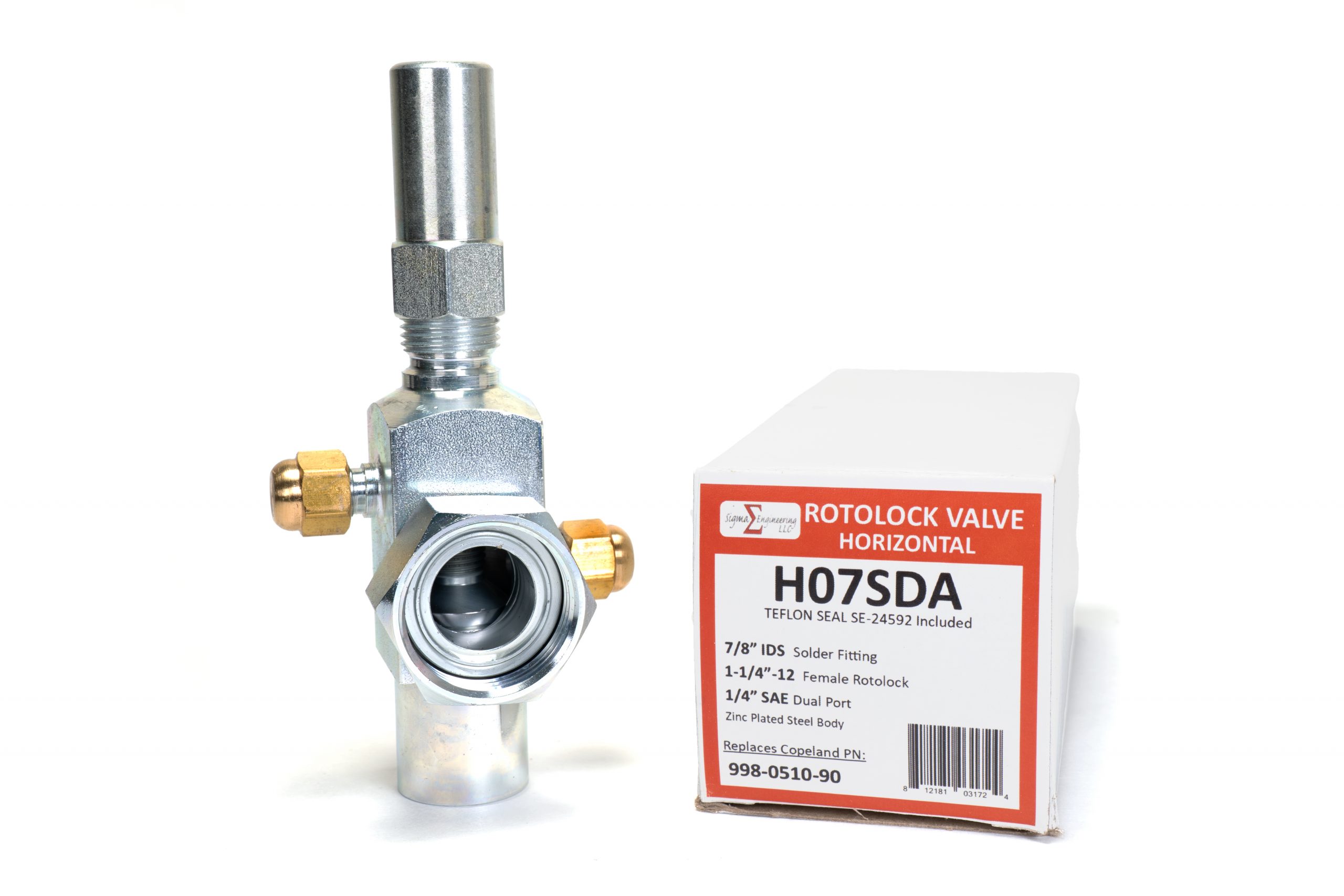

| H07SDA | 7/8" IDS | 1-1/4"-12 | SE-24592 | SE-RCAP-02P | 998-0510-90 | JPEG | |

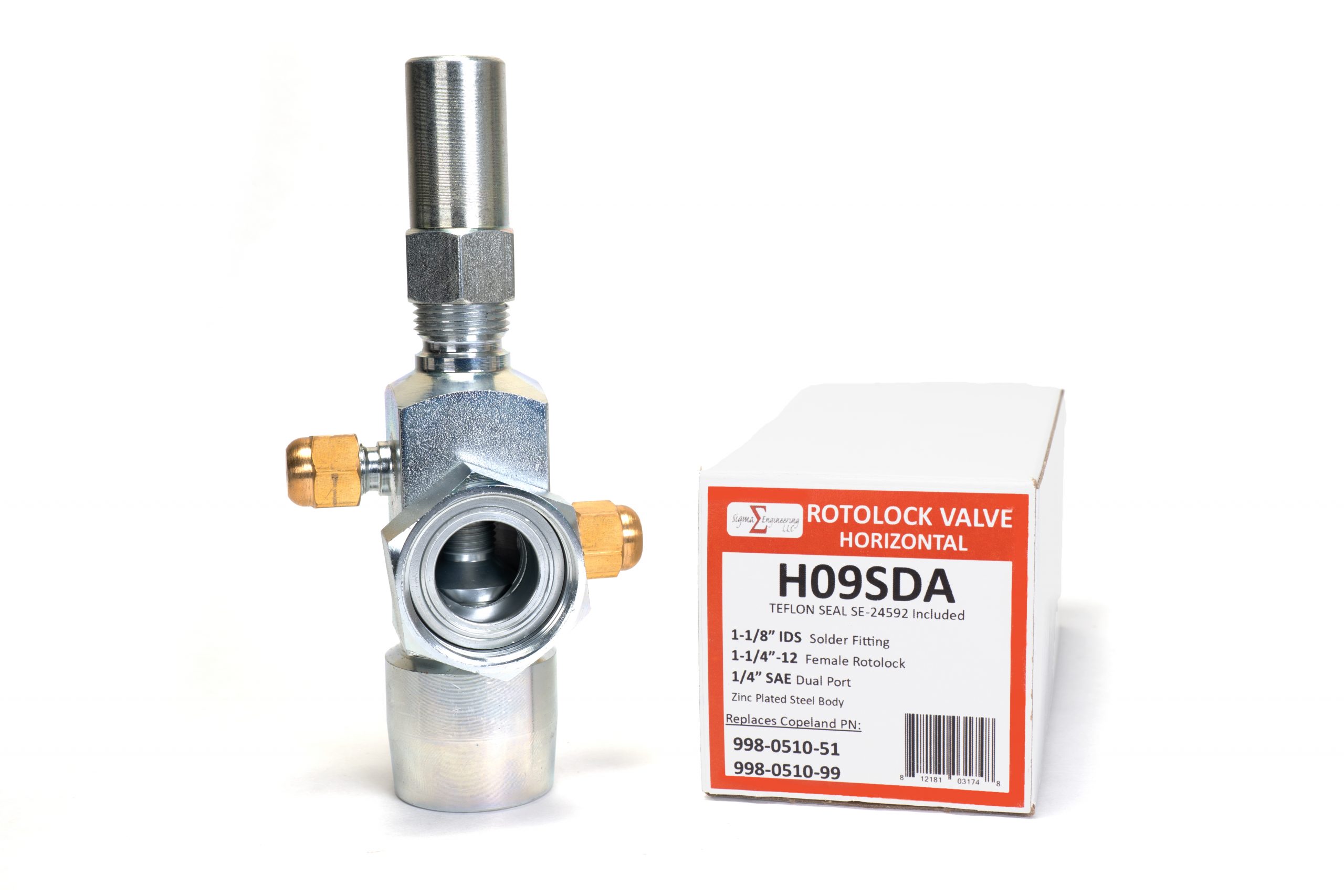

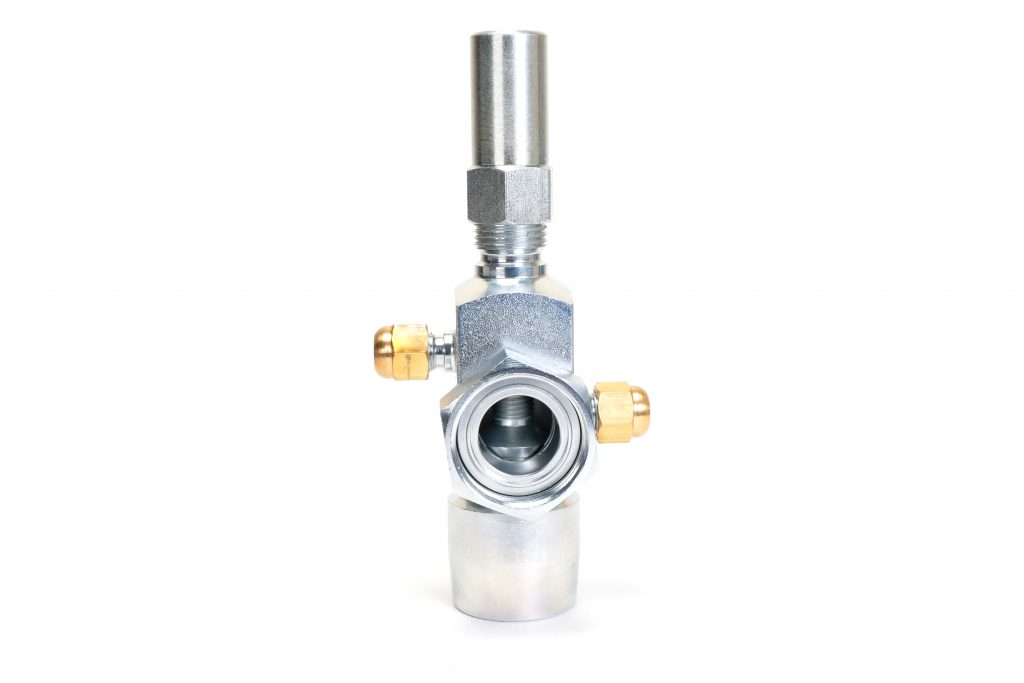

| H09SDA | 1-1/8" IDS | 1-1/4"-12 | SE-24592 | SE-RCAP-02P | 998-0510-99 | JPEG | |
| H11SDA | 1-3/8" IDS | 1-3/4"-12 | SE-24593 | SE-RCAP-03P | Coming |
